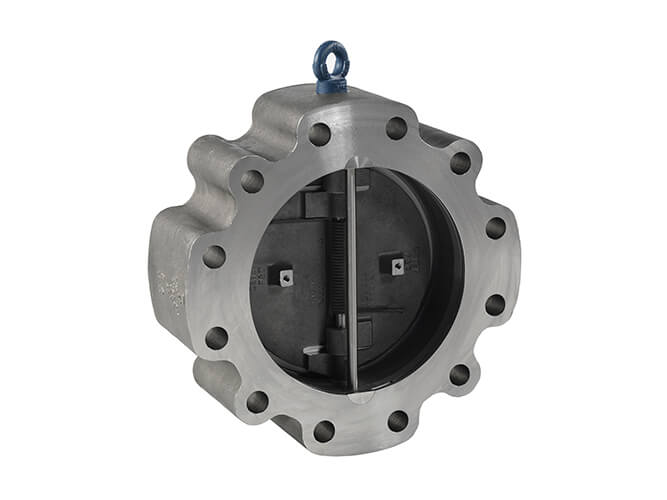

Dual Plate Check Valve - Lugged Body Style WC02 for Reliable Flow Control

Specifications

Technical Data

Size Range

2" - 24" (Larger sizes upon request)

Temperature Range

-46°C to +425°C

Body Style

Lugged

Operator

Spring Assisted

Shut Off Class

API 598, ISO 5208 Rate E

MATERIALS OF CONSTRUCTION

Body Materials

6Mo, Bronze, Duplex, Hastelloy® B, Hastelloy® C, Inconel® 625, Inconel® 825, Monel®, Nickel Aluminium Bronze, Super Duplex, Titanium

Obturator materials

Nickel Aluminium Bronze, Monel®, Bronze, Duplex, Super Duplex, Titanium, Inconel® 625, Inconel® 825, 6Mo, Hastelloy® B, Hastelloy® C

Stem Materials

Nickel Aluminium Bronze, Monel®, Duplex, Super Duplex, Titanium, Inconel® 625, Inconel® 718, Inconel® 825

DESIGN STANDARDS & APPROVALS

Face to Face

API 594

Accreditations

PED 2014 / 68 / EU

Approvals

FM 1230 Anti-Water Hammer Check Valves

Downloads Product Overview Benefits

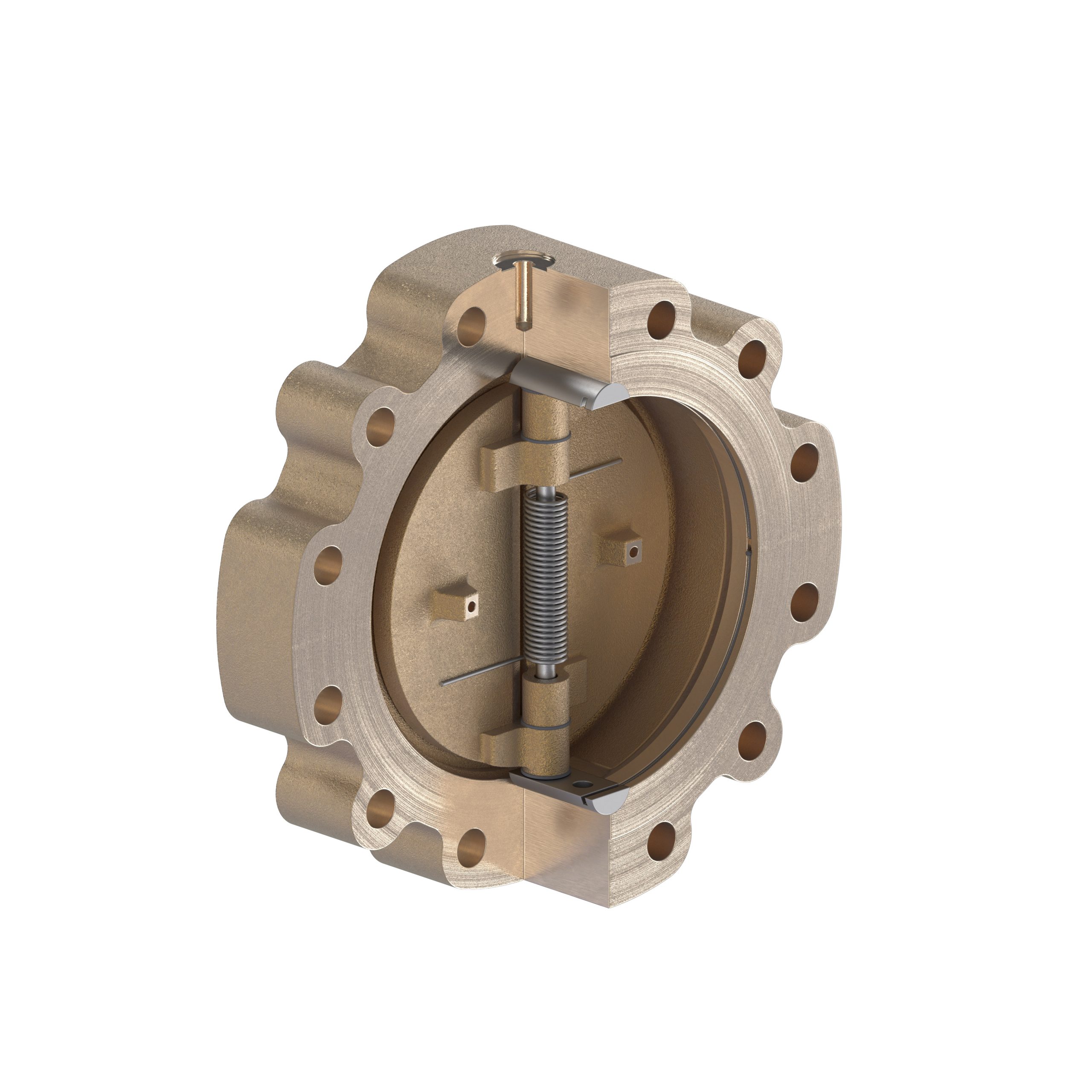

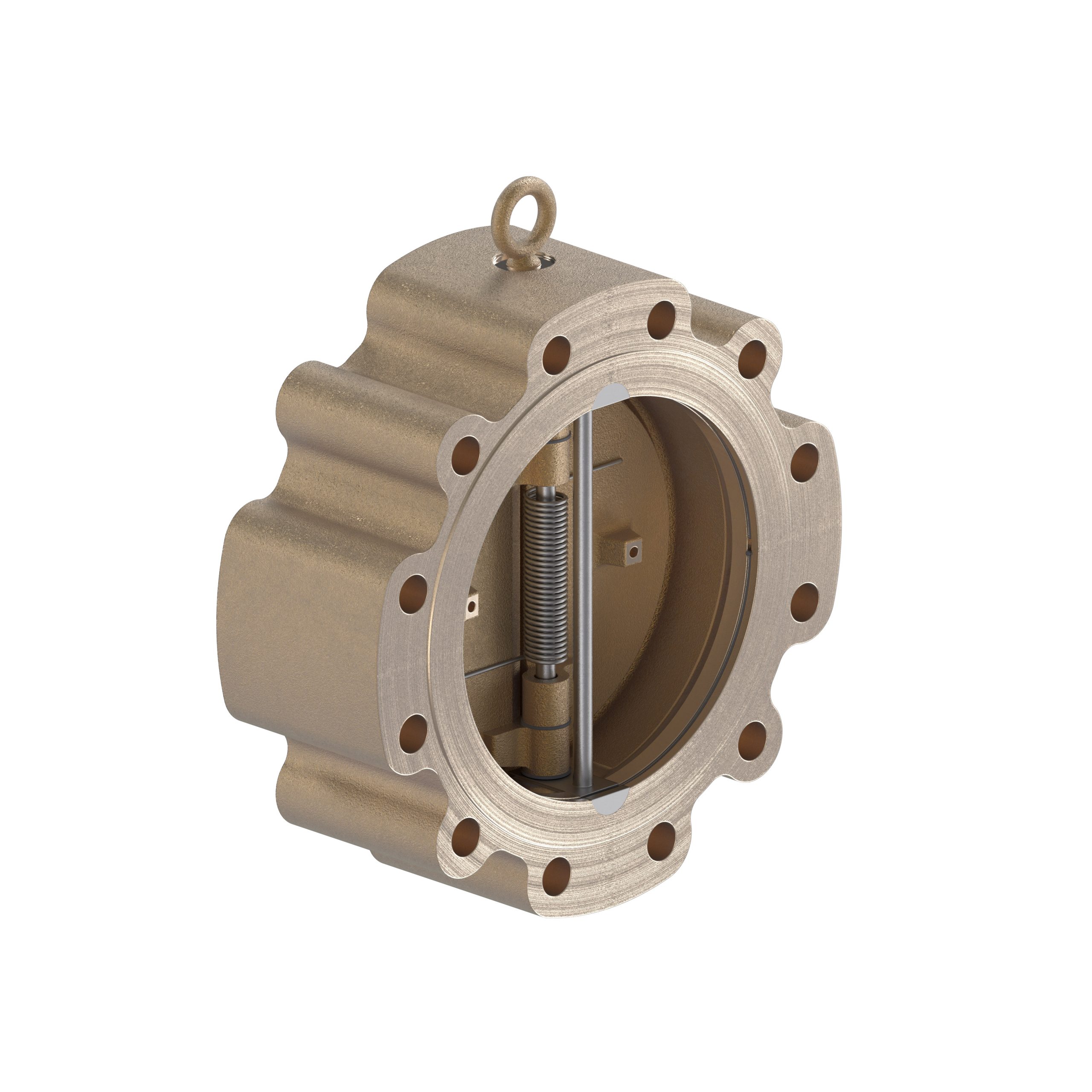

Dual-Plate Check Valve – WC02

Request a Quote

The benefits of the WC02 Lugged Body Style Dual-Plate Check Valve include:

Automatic operation due to the fluid acting on the discs
Dual-plate design reduces the possibility of water hammer occurring
Low-cracking pressure ensures a responsive product design without seat damage from chattering
Compact design reduces cost and minimises installed valve size

Dual Plate Check Valve Technical Sales Manual

Download
